D.E. Slurry Skid
For use with Diatomaceous
Earth Filter System. The skid contains tanks, pumps, and
mixers to precoat and body feed the D.E. Filter. Also designed
with dual pods on skid to minimize space.
Features:
•All Units are Stackable
•Air driven tank agitators
•Tanks and pipework constructed
of stainless steel
•Stainless dual pod unit designed
on skid for compactness and safety
•Air driven 3" pump to pull prime
and 2" pump for Admix
•Graduated barrel markers |

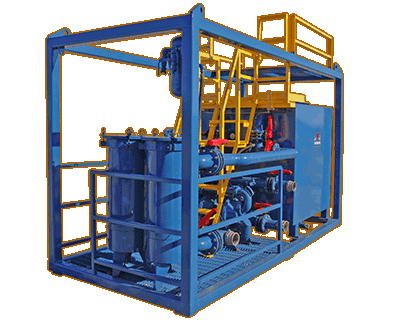

Model Shown Above:
Dimensions- 13'6"Lx 6'Wx 7'H
Weight - 6,000 lbs
Tank Capacity - 24 barrel
Compartments - 2
Pipework - 4" Inlet / Outlet |
| D.E.
Slurry Tank Model Comparison |
| |
400 |
600 |
800 |
1000 |
1200 |
1300
|
Dimensions(LxWxH)
|
13x6x7.9
|
13x6x7.9
|
13.6x6x7
|
13x6x7.8
|
14x6x7 |
14x6x7
|
Weight
|
5,500
|
5,500
|
6,000
|
6,000
|
6,000 |
6,000
|
Tank Capacity
|
22
|
22
|
24
|
24
|
32 |
32
|
Compartments
|
2
|
2
|
2
|
2
|
2 |
2
|
Pipework (inlet/outlet)
|
4"
|
4"
|
4"
|
4"
|
4" |
4"
|
| Filters |
19 |
19 |
38 |
38 |
60 |
60 |
|
