Overview - products and service you can trust

Choose from the list below for more information on each item:
D.E. Filter Press
D.E. Slurry Skid
Diesel Pump
Diesel Pump
Dual Pod Unit
Shearing Unit
Cartridges
D.E. Filter Media

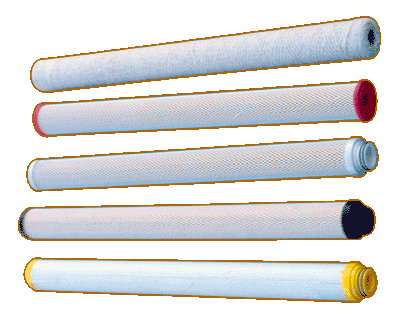

Cartridges

Various grades of elements can be used for different applications.
Absolute Rated Filters are used for critical applications requiring fine filtration and guaranteed effluent quality. Nominal Rated Elements are used either as pre-filters before absolute rated elements, or a coarse filters, depending on job requirements.

Features:
•"O" Ring seals to eliminate filter bypass
•End caps core and sheath constructed of polypropylene for wide chemical compatibility
•Epoxy or heat sealed side seams
•Pleated elements

Dimensions:
Dimensions - 29.5" L x 2.6" O.D. x 1.3" I.D.
Media - Polypropylene / Resin bound glass fiber or cellulose string wound
Filter Ratings (Typical) - Absolute: 2, 5, 10 microns
Filter Ratings (Typical) - Nominal: 5, 10, 25, 50 microns
Maximum Temperature - 180o
Collapse Rating - 60 psid
